ABB

Tripping Characteristics Type K
Number Of Poles 1
Current Rating 1A
Short Circuit Capacity 6kA
Rated Voltage 440 Vac, 60V(dc)
Dimensions 85x17.5x69mm

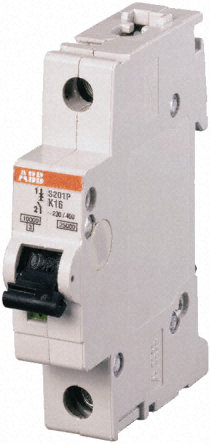

Type K Single Pole 6kA - Classic

Type K characteristics have been specifically designed for the protection of motor control circuits and items used within them. It has a very sensitive thermal curve, combined with a magnetic setting of 8 times the normal input current (In), which is high enough to avoid in-rush nuisance tripping, but provides good protection against over current conditions.

* DIN rail mounting
Complies with BS EN 60898
Operating temperature range of -25°C to +55°C
Standard 17.5mm width
Max. operating voltage: 440Vac, 60Vdc

Информация

Производитель: ABB

Артикул производителя: 2CDS 251 001 R0217
