Артикул производителя: 5500

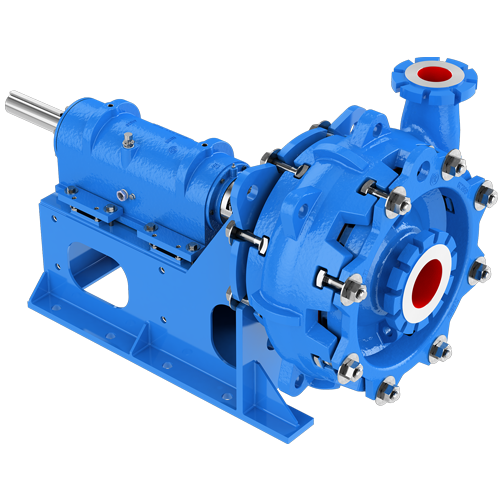

Goulds Model 5500 is the result of many years of experience designing and building severe duty slurry pumps. It's not only built to stand up to the toughest abrasive slurry services, but also is designed for extreme ease of maintenance and safety. A heavy duty bearing frame and shaft, extra thick wall sections and easily replaceable wear parts add up to many years of service even under the severest operating conditions.

• Capacities to 14000 GPM (3180 m³/h)
• Heads to 425 feet (139m)
• Temperatures to 250° F (121° C)
• Pressures to 500 PSIG (3448 kPa)
• Solids to 5 inches (127 mm)
• Large Diameter Impeller - Develops higher heads at lower operating speeds.
  Extra Heavy Duty Shaft - Assures minimum shaft deflection while handling pulsating loads associated with high specific gravity slurries.
  Simplified Mechanical Design - For ease of installation and maintenance.
  Extra Thick Wet End Components - For extended wear life.
  Sealing Flexibility Choice of packing, mechanical
• Primary Metals - Ball Mill Discharge, Sag Mill Discharge, Tailings, Cyclone Feed
• Coal Preparation - Heavy Media, Hydrocyclone, Cyclone Feed, Thickener Underflow
• Non-Metallic Mining - Clay Slurries, Phosphate Slurries, Soda Ash, Potash
• Sand and Gravel - Sand and Aggregate Slurries, Tailings
• Power Utility - Ash Slurries, Lime Slurries
• Wet Process Cement - Clay Wash, Clay Storage, Kiln Feed, Raw Grind Feed, Screenings
• Pulp & Paper - Black Liquor, Sand Slurries, Mill Waste, Sludge, Scrubber Water, Fly Ash
• General - Foundry Sand, Plant Waste, Mill Scale, Sand Slurries, Lime Slurries, Ash Slurries
