Артикул производителя: 3500XD

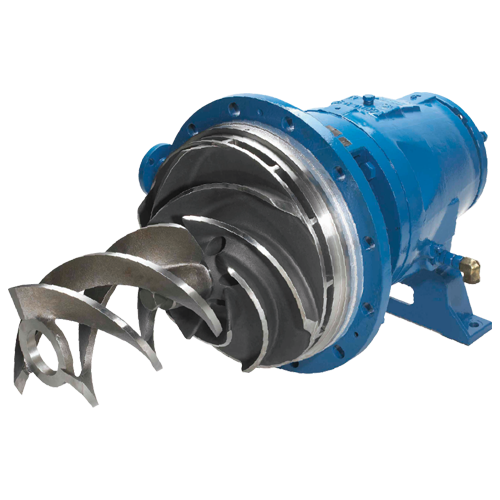

The 3500XD features a patented air separation device. The X-Ducer agitates paper pulp to assist flow into the pump inlet while separating air from the water and fibers. Pump efficiency increases up to 8 points with the X-Ducer, which translates into smaller motor sizes and lower operating costs. The XD design allows pumping of medium consistency pulp up to 10% without a vacuum pump further lowering initial capital and operating costs. The head generation has increased for the XD design – typically a 5% increase. The XD design also allows for lower suction head requirements. The X-Ducer design is based on ITT inducer technology. The X-Ducer can be retrofitted in the field.

• Complete system of pump, valves, standpipe and controls
• Pulp consistency to 16% bone dry.
• Capacity to 2200 tons per day
• Direct drive design
• Patented air separation system
• All stainless steel construction
• Improved efficiency
• Pumping from Washers, Presses and Disc Filters
• O2 Delignification Reactor
• D Stage Feed Pumping
• Eop Stage Pumping
• High Density Tower
