Series AZM161
Safety Contacts 3 N/O, 3 N/C
Solenoid Voltage 24Vac/dc
Action Power to Unlock
Holding Force 2000N
Number of Actuating Directions 3
Connection Type M16
Actuator Included No
AZM161 Series Switch IP67, with Emergency Release

* Double insulated thermoplastic enclosure
Auxiliary unlocking facility as an installation aid, and in the case of a power failure M5 key available.
3 cable entries
Actuator keys have 5.5mm tolerance play

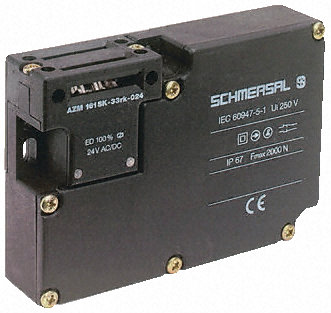

Solenoid Safety Switch

These guard locking devices ensure that guard doors remain shut until any dangerous condition has ceased to exist. With the guard door locked in place, the safety contacts are closed, with the position of the solenoid magnet monitored by an additional NC contact. Applying power to the solenoid allows the guard to be opened. The units are used in conjunction with a timer or standstill monitor. Installation is further simplified by new connection technology using insulation displacement terminals, an integral cable gland is provided. Units also have an auxiliary unlocking facility as an installation aid, and in case of a power failure. M5 triangular key available,

Информация

Производитель: Schmersal

Артикул производителя: AZM161SK-33RK
