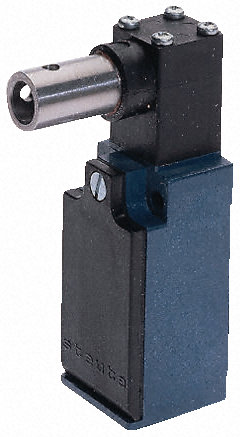

On opening the guard, the shaft will rotate, breaking the N/C contacts with a positive mechanical linkage.
This light duty switch is designed for use on hinged guards, with the operating shaft fixed to the hinge bolt.
The stainless steel shaft has a 9.5mm bore hole.
Body dimensions conform to DIN EN50047
The head may be turned 4×90°
Positive break is achieved with 7° movement

Информация

Производитель: Schmersal

Артикул производителя: ES95SB-10/1S
