Voltage Rating 250Vac
Current Rating 6A
Switch None
Fuse None
Indicator Type None
Mounting Method Flange
Dimensions WxDxH 51.5x26x65.5mm
Operating Frequency 0 to 400Hz

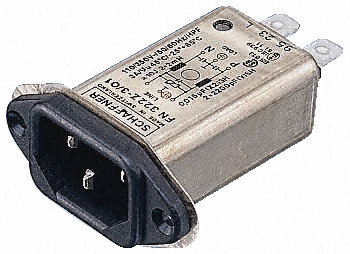

FN322Z

* General purpose filter with surge voltage protection

Technical specification
Max. attenuation (50Ω source/50Ω load,
common-mode/assymetric) 6A: 62dB @ 40MHz
Max. surge current 1200A (8/20μs)
Let through voltage 850V (@ 2kV/1kA 1.2/50μs, 8/20μs
Capacitors 0.015μF between lines (class X2)
2´2200pF each line to earth (class Y)
Line inductors 6A: 0.08mH
Earth leakage current 2´μ0.2mA (@ 250V, 50Hz)
Temperature range -25°C to +85°C
Connectors IEC320 input, 6.3´0.8 Faston output

Информация

Производитель: Schaffner

Артикул производителя: FN 332Z-6/05
