Voltage Rating 250Vac
Current Rating 3A
Termination 1/4 in Tab
Mounting Method Flange
Dimensions WxDxH 50.8x38.1x89.5mm
Operating Frequency 50/60Hz

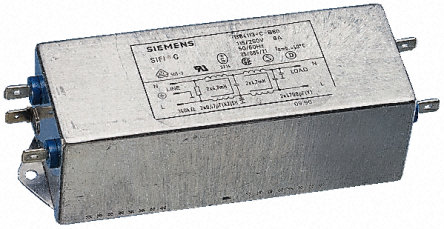

B84113-C / B84115-E Series

* High attenuation over a wider frequency range from high inductance values
SIFI-E range gives a better overall attenuation performance at frequencies below 150kHz
Ideally suited for switch mode power supplies in industrial electronic equipment
Low leakage current
Aluminium case

Technical specification
Rated Voltage 250V a.c., 50/60Hz
Insulation Test
Voltage VP 1414V d.c. 2s (Line-Line)
2700V d.c. 2s (Line-Case)
IEC Climatic Category 25/085/21
Connectors 6.3× 0.8 blade (DIN 46244)

Информация

Производитель: Epcos

Артикул производителя: B84113CB30
