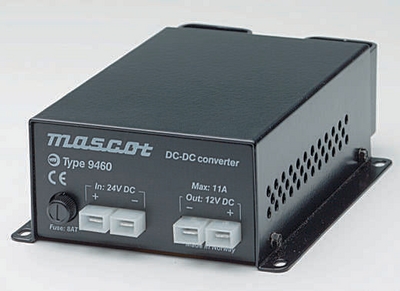

Преобразователь напряжения MASCOT, 9460
Voltage converter with stabilised output voltage. Suitable for mobile telephones, communication radios, mobile faxes, refrigerators, etc. The converter is protected against short-circuiting and incorrect polarisation and provided with surge protection on inputs and outputs, as well as thermal protection. The input is also provided with fuse protection. In-/outputs not electrically separated.
Input voltage: 18–32 Vdc
Output voltage: 13.2 Vdc
(internally adjustable 9.0–14.5 V)
Output current: 8 A continuous
11 A intermittent
Ripple: 50 mVrms at 8 A
Regulation: Line 2 %, load 3 %
Idle running current: 50 mA
Switch frequency: 55 kHz
Temperature range: −20 to +30 °C
Contact type: Blade, 6.3 mm
Dimensions (W×H×D): 107×47×107 mm
Weight: 400 g

Информация

Производитель: Mascot (Norway)

Артикул производителя: 9460
