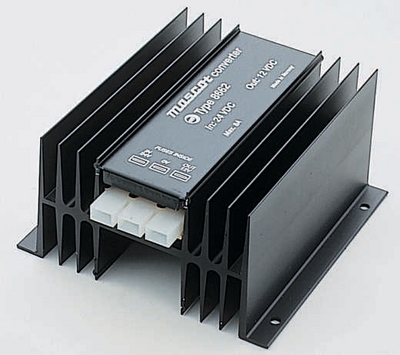

Преобразователь напряжения MASCOT, 8662
Linear voltage converter for feeding 12 V equipment from 24 V system voltage, for example in buses, lorries and other large vehicles. Completely earthed. (If electric separation is required, an 8661 voltage divider is recommended). Connects with standard 6.3 mm female blade terminals.
Inputs and outputs not electrically separated.
Input voltage: 20–30 Vdc
Output voltage: 13.5 Vdc
Output current: 6 A continuous
8 A intermittent
Regulation: Line 5 %, load 15 %
Temperature range: −20 to +25 °C
Contact type: Blade, 6.3 mm
Dimensions (W×H×D):
115×62×129 mm
Weight: 500 g

Информация

Производитель: Mascot (Norway)

Артикул производителя: 8662
