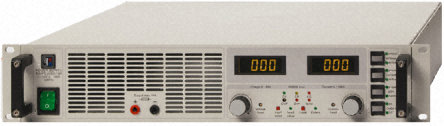

Источник питания Elektro-Automatik, PS 9080-100
EA-PS 9080 series
Power supply, power cable, instructions
Can be used as a desktop device or 19" mounted (except for 9080-50T, desktop version only)
Flexible output power level
Constant voltage or constant current operation (constant power operation via external interface)
target and actual values displayed
Remote sensing
Overvoltage / excess temperature protection OVP/OTP
Analogue interface 0→10 V as standard
Additional features "... ZH KFZ"
KFZ electronics test by simulating the engine start characteristic curve
With active loading for variable programming of fast flanks / curve progressions
Integrated function sequence, control in accordance with DIN 40839
Optional accessories
External USB interface UTA 12
With IEEE488.2 / RS232 interface on request
Selection guide
Model
EA-PS voltage
(V) Current
(A) Capacity
(W) Dimensions
(W x H x D)
9080-50T 0 → 80 0 → 50 0 → 1500 331 x 133 x 380 mm
9080-100 0 → 80 0 → 100 0 → 3000 19", 2 HU x 460 mm
9080-200 0 → 80 0 → 200 0 → 6000 19", 4 HU x 460 mm
9080-300 0 → 80 0 → 300 0 → 9000 19", 6 HU x 460 mm
9080-50 ZH KFZ 0 → 80 0 → 50 0 → 1500 19", 2 HU x 460 mm
9080-100 ZH KFZ 0 → 80 0 → 100 0 → 3000 19", 2 HU x 460 mm
9080-200 ZH KFZ 0 → 80 0 → 200 0 → 6000 19", 4 HU x 460 mm
9080-300 ZH KFZ 0 → 80 0 → 300 0 → 9000 19", 6 HU x 460 mm
Input voltage: 180 → 264 V (1.5 kW devices)
207 → 264 V (3 kW devices)
360 → 460 V 2-phase (6 kW devices)
360 → 460 V 3-phase (9 kW devices)
Line regulation: Load regulation: Residual ripple: Standards
EN 60950
Elektro-Automatik

Информация

Производитель: Elektro-Automatik

Артикул производителя: PS 9080-100
