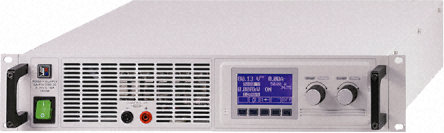

Источник питания Elektro-Automatik, EA-PSI 9080-300
EA-PSI 9000 series
Power supply, power cable, instructions
Can be used as a desktop device or 19" mounted
Flexible output power level
Remote sensing
Overvoltage and excess temperature protection OVP/OTP
Alarm management
Monitoring functions with adjustable delays
Integrated function generator
User profile with password protection
Blocking function for the operator panel
2 slots (rear) for interface cards
Models available with active load on request
Optional accessories
Internal resistance regulation: the internal resistance can be adjusted on the device (front potentiometer); this makes the power limiter rigid and can be adjusted using a fixed value in the menu
Analogue interface: electrically isolated, 0→10 V
Interface cards: RS232, USB, CAN, IEEE488.2
Selection guide
Model
EA-PSI Voltage
(V) Current
(A) Output
(W) Dimensions
(W x H x D)
9080-50 0 → 80 0 → 50 0 → 1500 19", 2 HU x 380 mm
9080-100 0 → 80 0 → 100 0 → 3000 19", 2 HU x 460 mm
9080-200 0 → 80 0 → 200 0 → 6000 19", 4 HU x 460 mm
9080-300 0 → 80 0 → 300 0 → 9000 19", 6 HU x 460 mm
9300-15 0 → 300 0 → 15 0 → 1500 19", 2 HU x 380 mm
9300-25 0 → 300 0 → 25 0 → 3000 19", 2 HU x 460 mm
9300-50 0 → 300 0 → 50 0 → 6000 19", 4 HU x 460 mm
9300-75 0 → 300 0 → 75 0 → 9000 19", 6 HU x 460 mm
Input voltage: 180 → 264 V (1.5 kW devices)
207 → 264 V (3 kW devices)
360 → 460 V 2-phase (6 kW devices)
360 → 460 V 3-phase (9 kW devices)
Line regulation: Load regulation: Residual ripple:

Информация

Производитель: Elektro-Automatik

Артикул производителя: EA-PSI 9080-300
