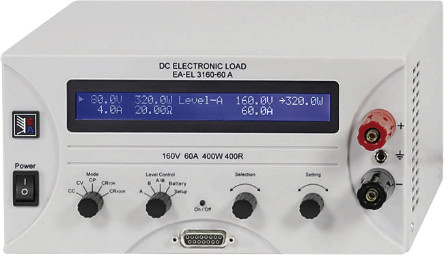

Источник питания Elektro-Automatik, EA-EL 3400-25
EA-EL 3000 / 9000 Series
EL 3000 - Table-top devices
EL 9000 - can be used either as table-top device or 19" mounted
Large display for simultaneous display of all parameters
4 operating modes: constant power, constant voltage, constant capacity, constant resistance
A/B operation with adjustable pulse length and rise
Trigger output
Analogue 0 → 10 V standard interface
Parallel switchable in master/slave mode via system bus (EL 9000 only)
Expandable with RS232, USB, CAN or IEEE interface card
Optional accessories
Interface cards RS232, USB, CAN, IEEE488.2 (e.g. order no.: 656-5171)
Selection guide
Model
EA-EL Input voltage
(V) Input current
(A) Input power
(W) Dimensions
(W x H x D)
3160-60 0 → 160 0 → 60 0-400 240 x 120 x 280 mm
3400-25 0-400 0 → 25 0-400 240 x 120 x 280 mm
9080-200 0 → 80 0 → 200 0 → 1200 19 ", 2 HU x 460 mm
9080-400 0 → 80 0-400 0 → 2400 19 ", 4 HU x 460 mm
9080-600 0 → 80 0 → 600 0 → 3600 19 ", 6 HU x 380 mm
9160-100 0 → 160 0 → 100 0 → 1200 19 ", 2 HU x 460 mm
9160-200 0 → 160 0 → 200 0 → 2400 19 ", 4 HU x 460 mm
9160-300 0 → 160 0 → 300 0 → 3600 19 ", 6 HU x 380 mm
9400-50 0-400 0 → 50 0 → 1200 19 ", 2 HU x 460 mm
9400-100 0-400 0 → 100 0 → 2400 19 ", 4 HU x 460 mm
9400-150 0-400 0-150 0 → 3600 19 ", 6 HU x 380 mm
Mains input voltage: 115 / 230 V selectable
Line regulation: 10 mV, 10 mA, 100 mW.1
0 mΩ (0 → 10 Ω adjustment range).1
00 mΩ (0 → 400 Ω adjustment range)
Analogue Interface: 0 →10 V
Supplied with
Electronic Load, Power Cable, Manual

Информация

Производитель: Elektro-Automatik

Артикул производителя: EA-EL 3400-25
