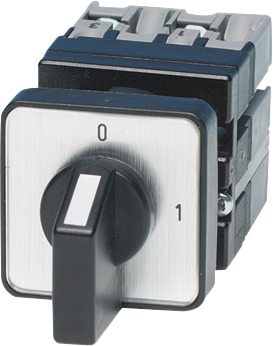

Переключатель BACO, 223501
Switch with high breaking capacity and compact design. For single hole mounting with optional 16 or 22 mm hole diameter. Supplied complete with knob and plate.
Rated voltage: 500 V
Breaking capacity AC21: 10 A
Rated power
3×230 V: 1.8 kW
3×380 V: 2.2 kW
Max. cable area: 2×1.5 mm2
Temp. range: −20 to +50 °C
Sealed to: IP65 (front)
Front dim.: 30×30 mm
Depth from panel front: 50 mm
Max. panel thickness: 5.5 mm

Информация

Производитель: Baco (France)

Артикул производителя: 223501
