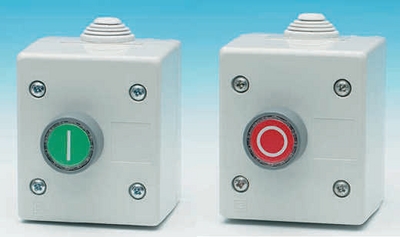

Пульт кнопочный ЕАО, 44-001.8-01
Control gear, complete with box. The switch has 1 make and 1 break function. An unmarked sign is available as an accessory. Sealed to IP65.
Approvals: CSA, UL, VDE.
Contact function: 1 make + 1 break
Breaking capacity
AC15: 2 A 400 Vac
AC11: 5 A 230 Vac
AC12: 10 A 500 Vac
Life, contact module: 1×107 times (mech)
Temp. range: −25 to +60 °C
Sealed to: IP65
Connection: Screw connection
0.5–2.5 mm2 (single wire conductor)
0.75–1.5 mm2 (multi-wire conductor)
Dimensions: 71×82×65 mm

Информация

Производитель: EAO (Germany)

Артикул производителя: 44-001.8-01
