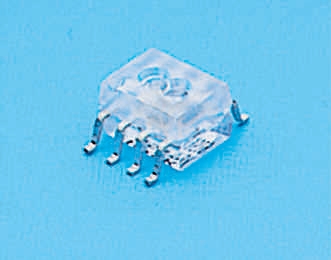

A surface mount reflex detector able to record the direction of linear and rotary movement. The detector consists of an emitter diode, a light detector IC and a number of light detectors in the same package.

Supply voltage: +4.5 to +5.5 V
Power consumption: 5.0 mA max
LED current: 15 mA (typ)
Max counting frequency: 15 kHz
Rise/fall time: 150/50 ns (typ)
Temp. range: 0 to +85 °C
Package: SO8

Информация

Производитель: Agilent Technologies (USA)

Артикул производителя: HEDR8000
