Клей Electrolube, TBS20S
Cure Time 48 h
Maximum Operating Temperature +120°C
Minimum Operating Temperature -40°C
Package Size 20 ml
Package Type Syringe
Product Material Epoxy
Thermal Conductivity 1.1W/mK
Type Thermal Conductive Compound

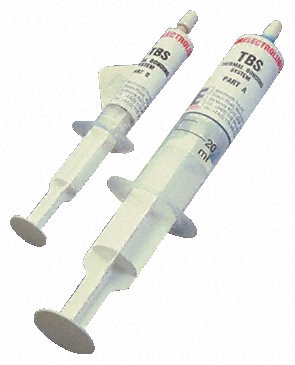

Electrolube 2 Part Thermal Bonding Epoxy

Two part, metal oxide loaded, thermal bonding system
Can be used to bond heat sinks assemblies in "piggy back" arrangements, assembly of complex heat sink and as a bonding medium in surface mounting assemblies
Excellent electrical insulation properties
Solvent free system ensures that mated surfaces cannot come into contact, ensuring no electrical leakage through the bond
Extremely thin curing coating of approx 200 microns
Bonds a wide range of surfaces; dissimilar metals, epoxies, acrylics, polycarbonates etc.
Room temperature curing. Mix ratio 3 to 1. Usable life when mixed: 3 to 4 hours
Specific heat capacity: 0.5cal/g/°C @ 30°C resin, 0.35cal/g/°C @ 30°C hardener
Cure time: 8 to 12 hrs @Room Temp; Hard 48 hrs @Room Temp; Full Cure 45 mins @100°C
Tensile strength 2200N/cm Resistivity 1014 – 1015 Ω cm

Информация

Производитель: Electrolube (United Kingdom)

Артикул производителя: TBS20S
