Набор инструмента Bernstein 2300

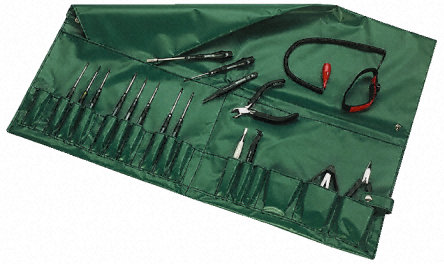

Folding ESD Workstation Mat with 16 Piece Tool Kit
Includes
Workstation mat with additional pockets:
Surface resistivity in accordance with DIN 53482 approx. 108 Ω
With 3 press studs for contact wrist band connection
Open dimensions (mm): 680 x 680
Closed dimensions (mm): 330 x 240 x 20
Contact wrist band: Hook and loop, non-allergenic,
1 MΩ protection resistor, press stud and
push-on terminal DIN EN 100 015 / 1
Earth wire: 1 MΩ protection resistor, 2.5 m long
1 x glass fibre contact cleaner
1 x PLCC extractor tool, ESD
1 x side cutter 120 mm ESD, soft wire to 1 mm
1 x snipe nose pliers, 120 mm ESD
ESD screwdriver:
1 each of slot 0.8 x 50 mm; 2 x 60 mm; 2.5 x 60 mm
1 each of PHILLIPS® PH000, PH00, PH0
1 each of TORX® T5, T8, T10
1 x 3.5 mm socket wrench
1 x tweezers 120 mm ESD, rounded tips, angled

Информация

Производитель: Bernstein (Germany)

Артикул производителя: 2300
