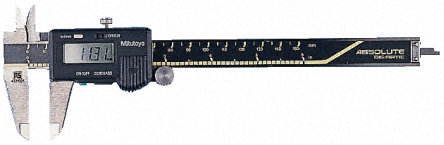

Штангенциркуль MITUTOYO 500-173
Mitutoyo – SPC Absolute
Electronic calipers with an LCD display which will display in either ’metric/imperial (switchable)’ or ’metric only’ reading depending on model.
General Features:
Fully hardened stainless steel beam & jaws with an anti-glare, satin chrome finish
All measuring surfaces are ground and lapped for high accuracy
Capable of measuring: inside, outside, depth and step
Storage temp. - -10 to +60°C
Operating temp. - 0 to +40°C
Electronic Features:
ON/OFF - Switches unit on, display indicates distance of jaws from pre-set origin point
ABS - Absolute feature re-sets the ’reference’ point of measurement of the instrument jaws
in./mm - Selects imperial or metric display
Origin - Pre-sets the zero point of the instrument. This point is memorised even if the unit is switched off
Calliper size 150mm 200mm 300mm
Instrumental error ±0.02mm/±0.001in. ±0.03mm/±0.0015in. -
Display height 7mm 7mm 5mm
Weight 170g 190g 355g
Note
Imperial/metric versions have thumbwheel where metric does not.
SPC output - A connection port continually transmits data (MITUTOYO FORMAT). 1m/2m leads are available separately, see this section
Supplied with
SR44 Battery

Информация

Производитель: Mitutoyo

Артикул производителя: 500-173
