Люксметр TESTO, 0560 0545

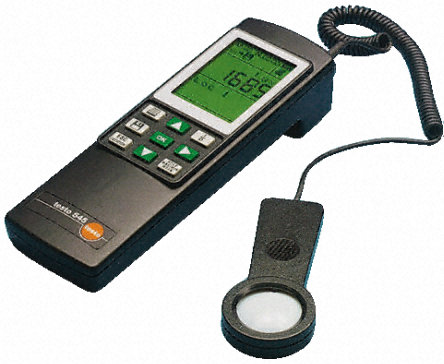

testo 545 Luxmeter
Measurement of luminance
Timed mean calculation
Selective mean calculation over 99 measurement points
Up to 99 measurement sites to choose from
Logger function
Optional accessories
"ComSoft 3 - Professional" software for managing measurement data, incl. database, assessment and graphics function
RS232 cable: Connection to enable data transfer to PC
Plastic carry-case
Supplied with probe, batteries and operating instructions
Replacement paper: 6 rolls
Measurement range: 0 → 100,000 Lux
Resolution: 0 → 32,000 Lux: 1 Lux
0 → 100,000 Lux: 10 Lux
Accuracy: According to DIN 5032, Part 6
f1 = 8%
f1 = V(λ) adaptation
f2 = 5%
f2 = assessment true to cos
Operating temperature: 0 → 50 °C
Transport temperature: -20 °C → +70 °C
Battery life: >50 h (Al-Mn)
Environmental Monitoring: Light Meters
Light Meters
Hand held digital light meters which measure light intensities in lux with the sensor connected by a 1m coiled lead.
Use this selection guide for recommended illuminance values.
Selection Guide
Corridors, stairs, etc. 100 / 150 Drawing offices/shops 750//1000
Warehouses, storage bays 100 / 150 Fine bench work 1000//1500
General office work 300 / 500 Fine inspection 1500//3000
Rough bench/machine work 300 / 500 Minute work 3000//5000
Medium bench/machine work 500 / 700

Информация

Производитель: TESTO

Артикул производителя: 0560 0545
