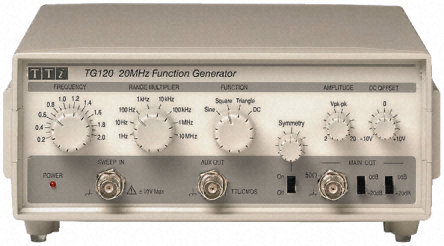

Функциональный генератор TTI, TG120 Aim-TTi TG120 20MHz Function Generator Low-cost dial-set function generator Highly integrated design achieves an upper frequency of 20MHz 10mV to 20V peak to peak from 50Ω Separate TTL/CMOS output d.c. offset control with zero detent Variable symmetry control External sweep input Frequency Range 0.2Hz to 20MHz in 8 overlapping decade ranges with line adjustment by a vernier Vernier Range >10:1 on each range Vernier Accuracy Typically ±5% of full scale Sweep Mode (external) Sweep Range Typically >20:1 Input Sensitivity Typically 0 to 2V for 10:1 sweep Operating Modes (Specifications apply for the top decade of each frequency range and output 10V peak-to-peak into 50Ω termination) Sine Distortion Typically 2% on 200, 2k and 20k ranges Triangle Linearity Typically 99% on kHz ranges Square Wave Rise and Fall Time Информация

Производитель: Thurlby Thandar Instruments

Артикул производителя: TG120
