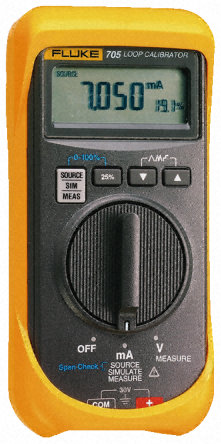

Калибратор токовой петли Fluke 705
705 Loop Calibrator
Compact calibrator for calibration, maintenance and repair of current loops
Simultaneous mA and % readout
0.02% mA accuracy
Push button 25% steps for fast linearity checks
'Span Check' for fast confirmation of zero and span
Selectable slow ramp, fast ramp and step outputs for valve slewing and loop functional tests
24V internal loop supply
Dimensions (H x W x D): 152 x 70 x 41mm
Temperature range 18 to 28°C
Range Resolution Accuracy
Voltage Measure 0 to 28V 0.001V 0.025% Rdg
+ 1 LSD

mA Measure 0 to 24mA 0.001 mA 0.02% Rdg
+ 2 LSD
mA Source 0 to 24 mA 0.001 mA 0.02% Rdg
+ 2 LSD
Max load 1000Ω
Loop Supply 24Vdc n/a 10%
General:
Maximum voltage 30V
Temp. coefficient -10 to 18°C, 28 to 55°C, ±0.005% of range per °C
Supplied with
9V installed alkaline battery, AC70A alligator clips, C10 protective yellow holster Flex-Stand™, instruction sheet, TL75 safety-designed test lead set, NIST- traceable calibration report and data

Информация

Производитель: Fluke

Артикул производителя: FLUKE-705
