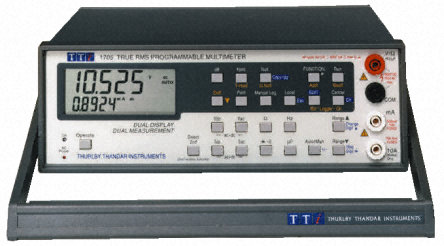

Мультиметр TTI, 58122-0640
Absolute Maximum AC Current Measurement 10A ac
Absolute Maximum AC Voltage Measurement 750V ac
Absolute Maximum Capacitance Measurement 100µF
Absolute Maximum DC Current Measurement 10A dc
Absolute Maximum DC Voltage Measurement 1000V dc
Absolute Maximum Resistance Measurement 20MΩ
AC Current Measurement Resolution 0.1µA ac
AC Voltage Measurement Resolution 10µV ac
Battery Life 150 (Disposable Cells) h, 75 (Rechargeable Cells) h
Battery Type C
Best AC Current Accuracy ±3% + 20 Digits
Best AC Voltage Accuracy ±1% + 80 Digits
Best Capacitance Measurement Accuracy ±5% + 5 Digits
Best DC Current Accuracy ±3% + 10 Digits
Best DC Voltage Accuracy ±0.06% + 3 Digits
Best Resistance Measurement Accuracy ±0.5% + 2 Digits
Capacitance Measurement Resolution 10pF
DC Current Measurement Resolution 0.1µA dc
DC Voltage Measurement Resolution 10µV dc
Dimensions 235 x 260 x 88mm
Display Type LCD
Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Resistance
Height 88mm
Length 235mm
Maximum Frequency 50kHz
Maximum Operating Temperature +50°C
Minimum Operating Temperature +40°C
Model Number p 1705
Multimeter Type Bench
Resistance Measurement Resolution 10mΩ
Safety Category CAT I 1000 V, CAT II 600 V
Safety Category Level CAT I, CAT II
Safety Category Voltage 1000 V, 600 V
True RMS Yes
Weight 2kg
Width 260mm

Информация

Производитель: Thurlby Thandar Instruments

Артикул производителя: 58122-0640
