2471/34-2

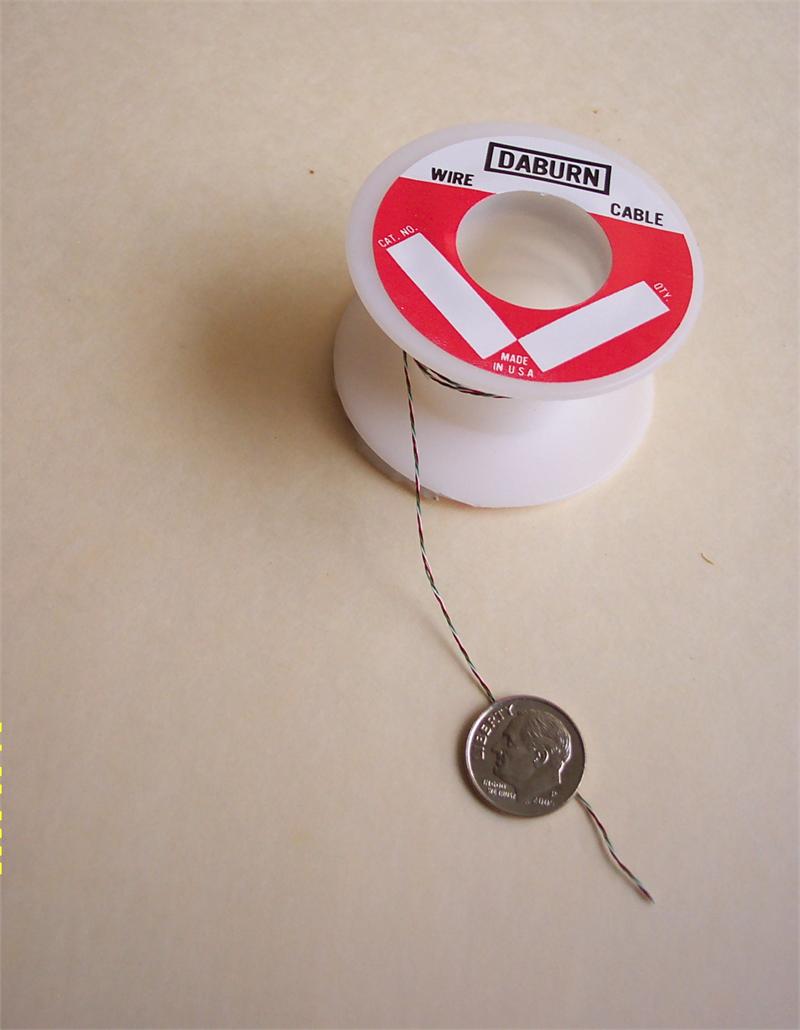

These twisted cables are constructed from our #2451 Daflon Microminiature PTFE hook-up wires.   The wires in this cable are chemically inert, weather resistant, and non-flammable; and resist soldering irons and moisture.  They maintain the benefits of PTFE wires while in a tiny package. Since the individual wires are made of ultra-thin walled PTFE insulation they offer savings of space and weight for applications ranging from medical, aircraft, missile, space and compact electronic components.

Description: Multi-conductor cables, conductors are twisted, each conductor is stranded silver plated copper covered with multiple layers of PTFE insulation. This construction allows for a uniform, flexible, concentric, quality construction.  No outer jacket.

Operating Temperature:  -90°C to +250°C

Voltage Rating: 300V.

Conductor Color Code: 1-Black, 2-Red, 3-White, 4-Green

This series is RoHS compliant.

_______________________________________________________________________________________________________

Артикул производителя: 2471/34-2

Подробное описание:  Скачать
