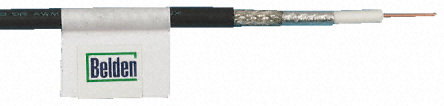

Кабель BELDEN 9248, RG6/U
Attenuation 5.3dB/100ft@700MHz, 6.1dB/100ft@900MHz, 6.5dB/100ft@1GHz, 8.3dB/100ft@1500MHz
Cable Shape Coaxial
Capacitance 53.136 pF/m
Characteristic Impedance 75 Ω
Coaxial Type RG6/U
Conductor Material Bare Copper
Conductor Strand Type Solid
Connector Type L
Core Strands 1/18
Insulation Material Foam HDPE
Maximum Operating Temperature +75°C
Minimum Operating Temperature -40°C
Number of Strands 1
Outer Diameter 6.858mm
Reel Length 152m
Sheath Colour Black
Sheath Material PVC
Size of Strands 18 AWG
Velocity ratio 82%

Информация

Производитель: Belden

Артикул производителя: 9248.00U153
