3M

Number Of Ways 20
Width 25.40mm
Voltage Rating 300V
Capacitance 46.36pF/m
Impedance - Resistance 105Ω

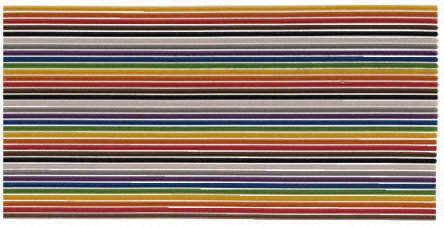

0.05in (1.27mm) Pitch Ribbon Cables - Type 3302

The 3302 series of 10 colour repeat clear carrier Coloured-(Ribbon Cable)

Coloured

Ribbon cables provide a simple, quick and cost-effective solution to mass termination. They also have space and weight saving advantages over other wiring methods and are ideal for use on computers, peripherals, and interface units, audio and digital equipment.colour coded ribbon cable, 28 awg wire on 0·05in. centres, permits mass termination to a broad line of 3M IDC connectors.
Stranded wire provides flexibility and extended product life.
Insulation resistance >x109Ω/3m.

Connector to cable compatibility
This cable is particularly suitable for a range of dedicated 3M IDC connectors.

Warning

These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies.


Информация

Производитель: 3M

Артикул производителя: 3302-20
