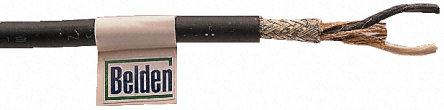

Кабель BELDEN, 8412
American Wire Gauge 20
Cable Shape Multicore
Capacitance Core To Core 108.24pF/m
Capacitance Core To Screen 190.24pF/m
Characteristic Impedance 67 Ω
Conductor Material Copper
Conductor Resistance 34.776904 Ω/km
Conductor Strand Type Stranded
Core Strands 26/34
Cross Sectional Area 0.52 mm
Current Rating 4 A
Insulation Material EPDM
Maximum Operating Temperature +90°C
Minimum Operating Temperature -50°C
Number of Cores 2
Number of Strands 26
Outer Diameter 6.6548mm
Reel Length 152m
Screen Type Tinned Copper Braid
Screened/Unscreened Screened
Sheath Colour Black
Sheath Material EPDM
Size of Strands 34 AWG
Voltage Rating 600 V

Информация

Производитель: Belden

Артикул производителя: 8412 010U500
