Series AZM190
Safety Contacts 1 N/O, 2 N/C
Solenoid Voltage 230Vac
Action Power to Unlock
Number of Actuating Directions 2
Holding Force 1750N
Connection Type M20
Actuator Included Yes

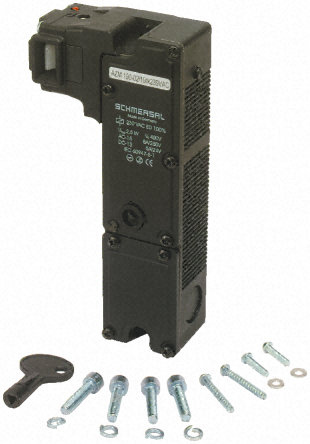

AZM190 Switch with Emergency Release IP67

* Double insulated thermoplastic enclosure
Manual release facility with M3 key
2 cable entries
Large wiring chamber for ease of installation
Actuating head can be fitted in 4 positions (90° steps)
Standards

IEC/EN60947-5-1/DIN VDE 0660-200; EN 1088, BG-GS-ET-15.

Solenoid Safety Switch

These guard locking devices ensure that guard doors remain shut until any dangerous condition has ceased to exist. With the guard door locked in place, the safety contacts are closed, with the position of the solenoid magnet monitored by an additional NC contact. Applying power to the solenoid allows the guard to be opened. The units are used in conjunction with a timer or standstill monitor. Installation is further simplified by new connection technology using insulation displacement terminals, an integral cable gland is provided. Units also have an auxiliary unlocking facility as an installation aid, and in case of a power failure. M5 triangular key available.

Информация

Производитель: Schmersal

Артикул производителя: AZM190-02/10RK230VAC
