Series AZ15
Safety Contacts 1 N/C
Connection Type M20
Holding Force 5N
Housing Material Glass Fibre Reinforced Thermoplastic
IP Rating IP67
Actuator Included No
Number of Actuating Directions 3

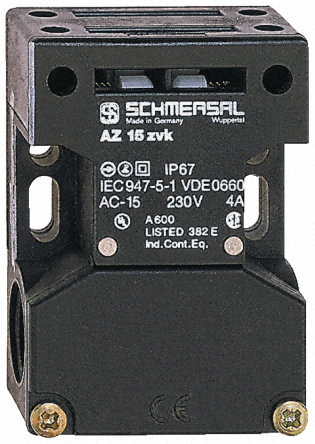

AZ15 Safety Interlock Switch with Separate Actuator

* Not sensitive to dirty conditions by virtue of patented roller system IP67 protection

Technical Specification
Safety Contacts (when actuator inserted) 1 pair N/C (positive break)
Rated operational current le (AC-15) 4A/230Vac, 2.5A/400Vac, 1A/500Vac max.
Case Material Glass fibre reinforced thermoplastic, self extinguishing
Conduit Entries 3 x M20, 3 x PG11
Operating Temperature -30 to +80°C
Mechanical Life 10 million operations

Информация

Производитель: Schmersal

Артикул производителя: AZ15 ZVK-M20-2254
