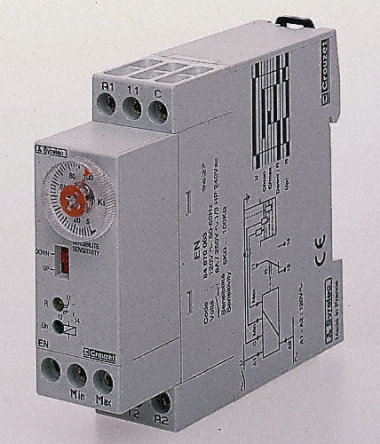

Реле CROUZET, 84 870 204
Operating Voltage 230Vac
Current 8 A
Power Consumption 3VA
Temperature Rating -20 to +60°C
Output Relay SPDT
Max Number of Probes Possible 2
Response Time 300 ms (High Level); 500 ms (Low Level)
Level Control Relays - ENR
For controlling the level of conductive liquids
Regulation of maximum and minimum levels using two probes
Monitoring filling (UP) or emptying (DOWN), selected by a switch on the front panel
Sensitivity adjustable from 5 to 100kΩ via front panel
Response time 300ms (high level); 500ms (low level)
Operating temperature; -20 to +50°C
DIN rail mounting
Dimensions (mm): H 78, W 22.5, D80

Информация

Производитель: Crouzet

Артикул производителя: 84 870 204
