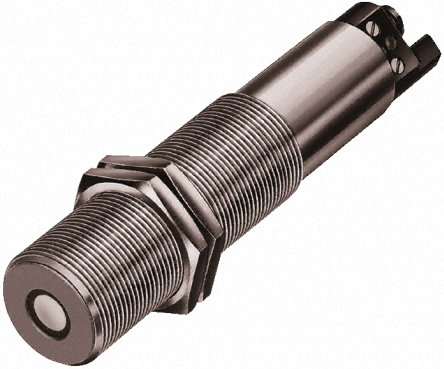

Датчик Pepperl + Fuchs, 3RG6112-3BF00
Body Style Barrel
Detection Range 6 → 30 mm
Diameter 30 mm
Housing Material Nickel Plated Brass
IP Rating IP65
Length 131mm
Maximum DC Voltage 30V
Maximum Operating Temperature +70°C
Minimum Operating Temperature -25°C
Output Type PNP
Supply Voltage 12 → 30 V dc
Switching Current 300 mA
Switching Frequency 8 Hz
Terminal Type 5-Pin M12 Connector
Thread Size M30 x 1.5
Transducer Frequency 400kHz

Информация

Производитель: Pepperl + Fuchs

Артикул производителя: 3RG6112-3BF00
