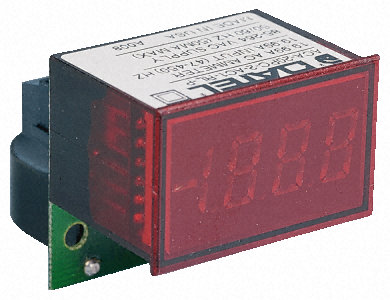

Амперметр DATEL, ACA-20PC-3-AC1-RL
Category LED Meters
Operating Temperature Range 0 to +60°C
Operating Voltage Range (Vac) 85 - 264(Vac)
Full Scale Deflection 50.0A
Accuracy Specification ± 0.15% (± 6 Counts)
Number Of Digits 3 1/2
Depth Behind Panel 52.78mm
Digit Height 9.4mm
Height 22.4mm
Length 35mm
Overall Depth 25.4mm
Panel Cut Out 33.9 x 21.3mm
Supply Current 50mA
Supply Voltage 85 - 264Vac

Overview
9.4mm, 3.5 Digit Ammeter
Direct measurement from 0 to 2 or 20, 50 or 100A via a built in current transformer
Insulation voltage 2000V
Includes bezel
22.4 x 35 x 25.4mm (H/W/D)
Panel cut-out 33.9 x 21.3mm
Depth behind panel 50.08/52.78/63.28mm (depending on range)

Информация

Производитель: Datel

Артикул производителя: ACA-20PC-3-AC1-RL
