PILZ

Series PNOZ
Safety Contacts 3 N/O
Auxiliary Contacts 1 N/C
Supply Voltage 24 Vdc
Safety Category 4
Dimensions 75x90x111.5mm
Number Of Input Channels 1 or 2
Conformity Standards VDE 0113, EN 60204-1, IEC204-1, EN 954-1
Type E-Stop, Gate, Light Barrier

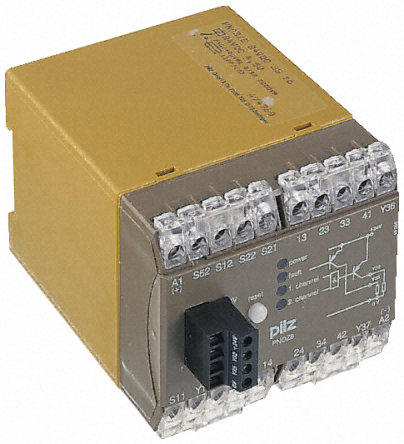

PNOZ/8 Safety Relays

* Can be used as safety gate monitor, emergency stop unit or light curtain monitoring
Semiconductor outputs for healthy and fault signals
Solid state outputs are rated at 50mA at 24Vdc with short circuit protection incorporated
Single and dual channel input
Recognises short circuited inputs
A safety cut-out is triggered should an earth fault or a short across the key contacts occur

Информация

Производитель: PILZ

Артикул производителя: 474760
