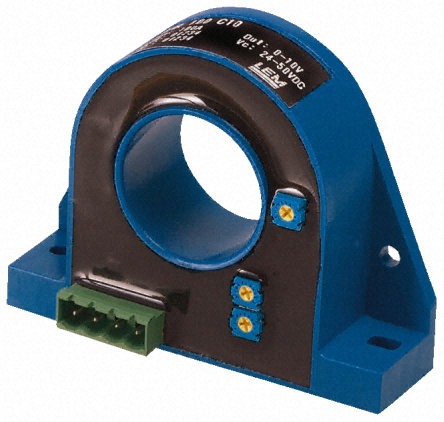

Датчик LEM, DHR600 C420
Accuracy ±1 %
Frequency Bandwidth DC 20 → 6000 Hz
Input Current Range 600 A rms
Maximum Cable Diameter 32mm
Maximum Operating Temperature +70°C
Minimum Operating Temperature -40°C
Mounting Type Panel
Output Current Range 4 → 20mA
Overall Depth 25mm
Overall Height 70mm
Overall Width 90mm
Sensor Type Open Loop Hall Effect
Supply Voltage 20 → 50 V dc
Thermal Drift ±0.1%/K
Transformer Type Solid Core

Информация

Производитель: LEM

Артикул производителя: DHR600 C420
