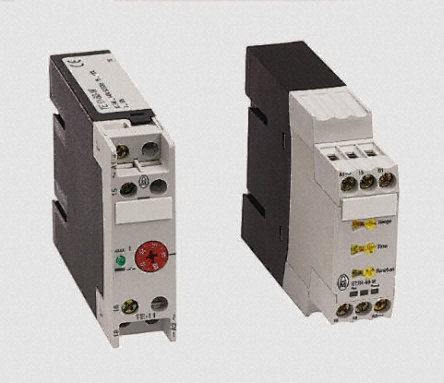

Таймер MOELLER, ETR4-11-A
Contact Configuration NO/NC
Current Maximum 3 A
Depth 103mm
Length 82.5mm
Maximum Operating Temperature +60°C
Maximum Voltage 240 V dc, 400 V ac
Minimum Operating Temperature -20°C
Minimum Voltage 24 V ac/dc
Mode of Operation ON Delay
Mounting Type DIN Rail
Number of Contacts 1
Number of Timer Functions Single
Power Supply External
Supply Voltage 24 → 240 V ac/dc
Switch Configuration SPDT
Terminal Type Screw
Time Delay 70 (Recovery) ms
Time Increment Hours, Seconds
Time Range 0.05 s → 60 h
Width 22.5mm

Информация

Производитель: Moeller

Артикул производителя: ETR4-11-A
