Mfr. United Automation

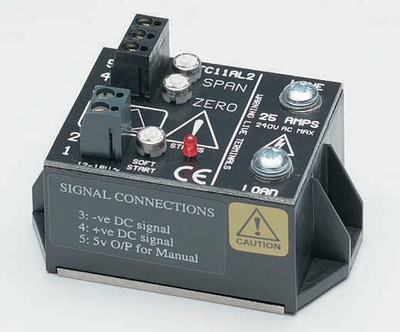

Phase angle controlled trigger module with integrated triac for regulating resistive loads such as radiators and lamps as well as some inductive loads such as transformers. The module has a controller for soft start interval and trigger parameters where signal range and start level can be adjusted.



Supply voltage: 18 to 24 Vac
Voltage, load: 25 to 230 Vac
Max load current
at Rth = 8 °C/W: 8 A max
at Rth = 4 °C/W: 12 A max
at Rth = 2 °C/W: 16 A max
at Rth = 1 °C/W: 25 A max
Soft start interval: 0 to 20 s
Signal range: 0 to 5 Vdc min
0 to 25 Vdc max
Start level interval: 0 to 30 % of signal range
Max. temperature: +65 °C
Dim. W×H×D: 73×44×44 mm
c-c: 64 mm

Информация

Производитель: UAL (United Kingdom)

Артикул производителя: FC11AL/2
