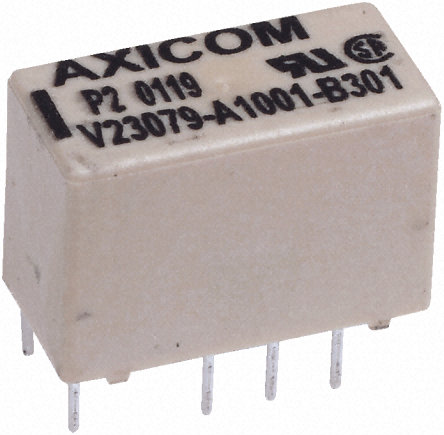

Реле Tyco, V23079A1003B301
Contact Configuration DPDT
Coil Voltage 12Vdc
Current Rating Max. 2 A
Maximum Voltage Rating 250 Vac; 220 Vdc
Power Rating Max. 60W / 62.5VA
Coil Resistance info 1029 Ω
Coil Power info 140 mW
Contact Resistance 50mΩ
Contact Material AgPd
Life 1 x 108
Operating Temperature -40 → +85°C
Mounting Through Hole
Relay Construction Non-Latching
Isolation Coil To Contact 1500V
Miniature Relays P2 Series

* 2A DPCO
Contact Material: AgPd
High coil sensitivity
Applications: telecomms. terminals & accessories, control & medical equipment and automotive
Max. Switching Voltage 220 Vdc; 250 Vac
Dimensions: 9.9mm x 7.5mm x 15mm
Operating Temperature Range -40 to +85°C

Информация

Производитель: Tyco Electronics

Артикул производителя: V23079A1003B301
