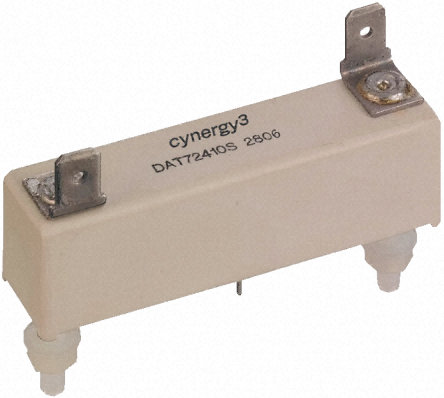

Реле SYNERGY3, DAT72410S
Contact Configuration SPST-NO
Coil Voltage 24Vdc
Switching Current 2A
Switching Voltage 7 kVdc or ac peak
Switching Power 50W
Coil Resistance 780Ω
Operating Temperature -20 → +70°C
Mounting Panel
Relay Construction Non-Latching
Vacuum Encapsulated D Series

* 50W switching
7kVdc or ac peak switching voltage
10kV contact isolation
17kV contact to coil isolation
Insulation resistance 1010 ohms
Contact resistance 250 mΩ max
Operate time (inc. bounce) 3ms
Release time (inc. bounce) 2ms
Panel mount with 0.25in. male terminals
Suitable for high voltage test equipment and power supplies

Информация

Производитель: Cynergy3

Артикул производителя: DAT72410S
