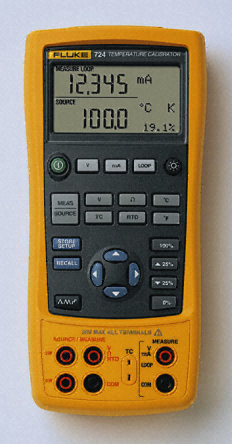

Мультифункциональный калибратор FLUKE 724
Temperature Calibrator 724
An easy to read dual display lets you view input and output simultaneously
Measure RTDs, thermocouples, ohms and volts to test sensors and transmitters
Source/simulate thermocouple, RTDs, volts and ohms to calibrate transmitters
Perform fast linearity tests with 25% and 100% steps
Execute remote tests with auto step & auto ramp
Power transmitters during test using loop power supply with simultaneous mA measurement
Store frequently-used test set-ups for later use
Compact, ergonomic shape
Rugged, reliable design stands up to field use
Backlight lets you work in poor light
Function Measure Sourcing
Voltage 0-30V 0-100mV, 0-10V
Current 0-24mA -
Resistance 0 to 3200Ω 15 to 3200Ω
MV (TC terminals) -10mV to +75mV
Thermocouples J, K, T, E, R, S, B, L, U, N
RTDs Pt100 (385), Pt100 (3926), Pt100 (3916 JIS), Pt200 (385), Pt500 (385), Pt1000 (385)
Supplied with
4 x AA batteries, TL75 Test leads, AC70A Test clips and one pair of stackable test leads.

Информация

Производитель: Fluke

Артикул производителя: FLUKE 724
