Калибратор давления FLUKE718 EX100G

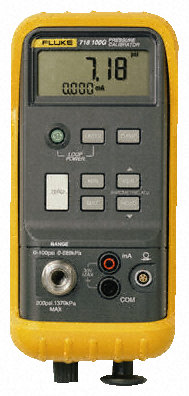

Fluke 718-30G and 718-100G
Built in pressure /vacuum hand pump, with vernier and bleed valve
Pressure measurement to 0.05% of full span, using internal pressure sensor
Current loop measurement with 0.025% accuracy and 0.001mA resolution
24V loop supply
Min-Max hold functions
Compact size and weight
Simple push-button user interface
Pressure range -12 to +30psi (718-30G) -12 to +100psi (718-100G)
Pressure units psi, in.H2O (4°C), in.H2O (20°C), cmH2O(4°C), cm
H2O(20°C), bar, mbar, kPa, inHg, mmHg, kg/cm
Operating modes Zero, Min, Max, Hold, Damp
Source pressure -11psi to full scale (built in pump)
Current range 0 to 24mA
Loop supply 24V d.c. ±10%
Drive current 20mA into 1000Ω (V batt >6.8V)
20mA into 700Ω (Vbatt 5.8V to 6.8V)
Operating Temp -10 to +55°C
Dimensions H. 201 W.98 Wt.600g (with holster)
Supplied with
protective yellow holster, test lead set, crocodile clips, 9V alkaline battery (fitted)

Информация

Производитель: Fluke

Артикул производителя: FLUKE 718 100G
