Voltage Rating 250Vac
Current Rating 16A
Termination 1/4 in Tab
Mounting Method Flange
Dimensions WxDxH 119x85.5x57.6mm
Operating Frequency 0 to 400Hz

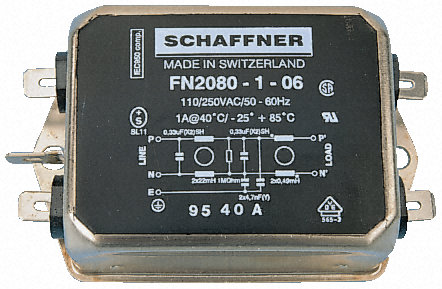

FN 2080 Series

* Two-stage chassis mount filters in aluminium case
Inductance values in the second stage (differential mode) are selected to provide excellent wide-band filtering
Connection by 0.25in Faston terminals

Technical specification
Operating Voltage 250V a.c., 50/60Hz
Operating Frequency 0-400Hz
Resistor Value 0.47 MΩ (3A), 0.22 MΩ (6A), 0.22 MΩ (10A), 0.22 MΩ (16A)

Approvals

UL recognised, CSA Certified, VDE

Информация

Производитель: Schaffner

Артикул производителя: FN 2080-16/06
