Low-Power, Low-Noise, Regulated High Voltage Supply

1.2kV to 2kV at 2.4mW

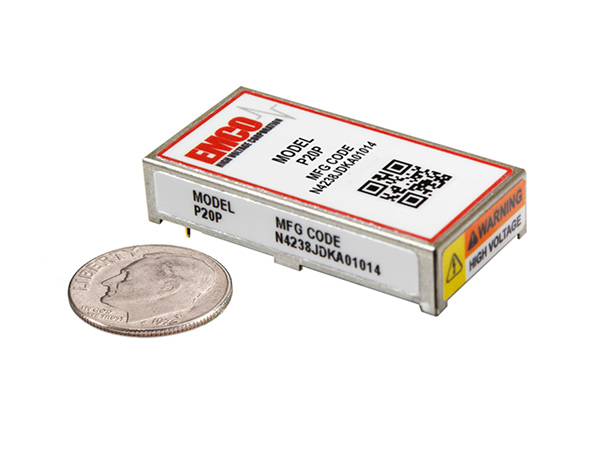

The P Series of micro-power DC to high voltage DC converters feature extremely low ripple (<100µV) and low EMI/RFI due to a unique magnetic-free design. Very low power consumption and light weight, with a case height of less than 0.220 inch, make these PC-mount modules ideal for portable, battery-powered equipment.

Fully regulated and programmable outputs of 0 to 1.2kV or 0 to 2kV are available in positive or negative polarity. A precision onboard reference and high impedance voltage programming input allow for easy plug-and-play designs. An output voltage monitor is standard. Soft-start high voltage ramp-rates protect sensitive detectors to support long-term reliability.

APPLICATIONS

Portable, Battery-Powered CBRN Detectors

Low-Power Electrostatic Applications

Low-Power Biasing

Low-Power Piezo Devices

Low-Power Aerosol Devices

FEATURES

Ultra-Low-Noise Magnetic-Free Design

Regulated

Miniature Size

Grounded Metal Case

0 to 100% Programmable Output

Wide Input Voltage Range: 5 to 12V

Ultra-Low Ripple: < 100µV

Ultra-Low EMI/RFI

Voltage Monitor

External Voltage or Potentiometer Programming

Low Power Consumption

Built-in Voltage Reference

Soft Start

High Reliability: MTBF >1.6 Million Hours per Bellcore TR-332

OPTIONS

Polarity: Choose Positive or Negative Output (P/N)

Extended Operating Temperature (T Suffix)

Other Output Voltages Available

See Ordering Information: Page 5 of P Series Data Sheet
