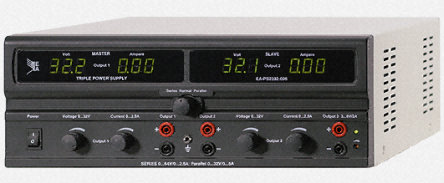

Источник питания Elektro-Automatik, PS 2332-025
EA-PS 2000 series
Laboratory, double laboratory and fixed voltage devices
Transistor linear controller with transformer switching
output power 80 W,160 W,2 x 80W,2 x 160 W
Output voltages 0 → 16 V, 0 → 32 V
Output currents from 2.5 A → 20 A, depending on the type
Outputs continuous short-circuit proof
Voltage and current continually adjustable
For teaching and training businesses
Volt and ammeter with LED design (not for PS-2012)
Housing closed top and bottom
Safety output sockets
Internal series / parallel connection on double laboratory power supplies (dual tracing from the master)
Additional fixed voltage output 3 → 6 VDC can be adjusted, 2A can only be loaded for the double voltage laboratory power supplies
Selection guide
Fixed voltage power supplies Voltage Ripple (mVeff) Current W x H x D (mm)

EA-PS-2012-05 12 → 14 V 0.05 5 A (>6 A power off) 174 x 90 x 182
EA-PS-2012-10 12 → 14 V 0.05 10 A (>12 A foldback) 210 x 120 x 254
EA-PS-2012-15 12 → 14 V 0.05 15 A (>17 A foldback) 210 x 120 x 254
EA-PS-2012-20 12 → 14 V 0.05 20 A (>22 A foldback) 355 x 130 x 320
Single voltage laboratory power supplies
EA-PS-2016-050 0 → 16 V 0.04 0 → 5 A (0.02 mAeff) 210 x 132 x 255
EA-PS-2032-025 0 → 32 V 0.04 0 → 2.5 A (0.02 mAeff) 210 x 132 x 255
EA-PS-2032-050 0 → 32 V 0.04 0 → 5 A 210 x 132 x 255
EA-PS-2016-100 0 → 16 V 0.04 0 → 10 A (0.03 mAeff) 210 x 132 x 255
Double voltage laboratory power supplies
EA-PS-2316-050 2 x 0 → 16 V 0.05 2 x 0 → 5 A (0.02 mAeff) 355 x 132 x 320
EA-PS-2332-025 2 x 0 → 32 V 0.05 2 x 0 → 2.5 A (0.02 mAeff) 355 x 132 x 320
Input voltage 230 V AC, +10% / -5%, 50 / 60 Hz
(fixed voltage power supplies)
230 V AC, ±8%, 50 / 60 Hz
(single voltage laboratory devices)
230 V AC, ±10%, 50 / 60 Hz
(double voltage laboratory devices)
Control variables:
Load regulation (0 → 100% IOUT): 10 → 50 mV depending on the model
Control time (80 → 100% IOUT, dyn.): 60 → 100 μs depending on the model
Current limiting &. short-circuit protection in accordance with EMC LVD guideline
EN 50081 part 1 and part 2
EN 50082 part 1 and part 2
Elektro-Automatik

Информация

Производитель: Elektro-Automatik

Артикул производителя: PS 2332-025
