Источник питания Elektro-Automatik, 36700003

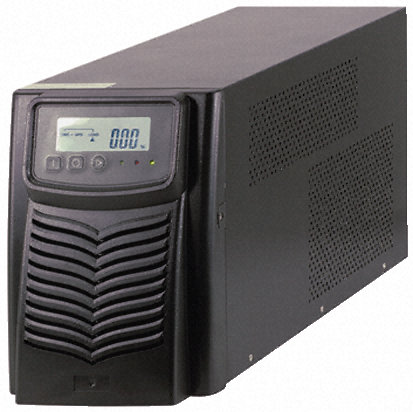

INFORMER COMPACT Series
Line interactive principle
UPS classification VI-SS-222 in accordance with IEC 62040-3
True sine wave voltage for any critical load
Step-up/step-down converter with automatic voltage regulation (AVR)
Cold start and energy-saving functions
Advanced battery management (ABM)
Error messages and status warnings
Soft start for critical loads
Deep discharge protection
Overload and short circuit protection
User-friendly LCD display
RS232 interface with software
Compact size, lightweight, low noise
Input voltage 230 VAC ±25% at 50 / 60 Hz
Recharging time 2 → 4 hr. (up to 90%)
Safety EN 50091-1, EN 50091-2, IP20
Displays Battery status, load level, various faults, input voltage, mode, output voltage, output frequency
Model Power
(VA) Power
(W) Backup time
(50% / 100% load) Dimensions
(W x H x D) Load terminals Stock no.
INFC 1000 1000 600 9 / 4 min. 175 x 247 x 370 mm 3x IEC, 2x Schuko
INFC 2000 2000 1200 9 / 4 min. 175 x 247 x 473 mm 3x IEC, 2x Schuko
INFC 3000 3000 1800 8 / 3.5 min. 175 x 247 x 473 mm 3x IEC, 2x Schuko
Supplied with
UPS, power cable, RS232 cable, software, operating instructions

Информация

Производитель: Elektro-Automatik

Артикул производителя: 36700003
