Датчик TESTO 0572 1751
testo 175 Series Temperature Data Loggers
The testo 175 series data loggers have a USB and an SD card interface, making readout of the data fast and easy. The considerably higher memory capacity and the power supply using conventional batteries are further plus points
Data security
Password protection
Anti-theft lock
Robustness
Large display
Longer battery life
Large memory

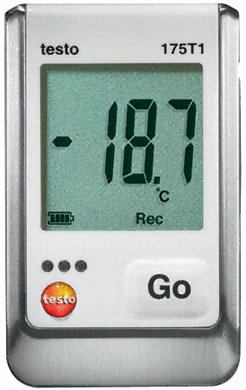

Model testo 175 T1 testo 175 T2 testo 175 T3
1-Channel temperature data logger with internal sensor (NTC)
Professional temperature monitoring for refrigerated and deep freeze rooms
Compact logger for a long term monitoring e.g. during transport of goods 2-channel temperature data logger with internal (NTC), and external sensor connection (NTC)
Simultaneous monitoring of air and product temperature
External probe input e.g. of a food probe for measuring the core temperature of goods 2-channel temperature data logger with external sensor connections (TC Type T and Type K)
Parallel monitoring and recording of 2 temperature measurement sites
Easy monitoring and documentation e.g. of the flow and return temperature of a heating system
Sensor NTC NTC TC (Types T and K)
Channels 1 x internal 1 x internal, 1 x external 2 x external
Measuring range -35 → +55 °C internal -35 → +55 °C internal
-40 → +120 °C external -50 → +400 °C (Type T)
-50 → +1000 °C (Type K)
Accuracy ± 0.5 °C (-30 → +55 °C) ±0.4 °C (-25 → +55 °C)
±0.8 °C (-40 to – 25.1°C) ±0.5 °C (-50 → +70 °C)
±0.7 % of mv (remaining)
Battery life (at +25 °C, 15 min. measuring rate) 3 years 3 years 3 years
Operating temperature -35 → +55 °C -35 → +55 °C -35 → +55 °C
Measuring cycle 10 sec - 24 h 10 sec - 24 h 10 sec - 24 h
Memory 1 million measurement values 1 million measurement values 1 million measurement values
Note
testo ComSoft Basic 5:
Graphic user interface guides the user step-by-step through the individual procedures
Convenient export functions, e. g. for further processing of the data in Microsoft Excel, or the generation of a PDF which can be made available to other users
The testo ComSoft Basic 5 offers all the basic functions of a logger software
Free download of the testo ComSoft Basic 5 with mandatory registration

testo Comsoft Professional V4:
For more comprehensive software (testo Comsoft Professional V4), please see RS 745-7043. Comsoft V4 includes data archiving and an online measurement function. Comsoft V4 is compatible with Windows 7, Windows®XP service pack 2 and Windows Vista. Computer interface required: USB 1.1 or higher and Internet Explorer 5.0 SP1 or higher. Compatible logger models: testo 171, 174, 175, 176, 177. Also compatible with the testo 435-4 Climate Tester.
