Измеритель мощности Gossen, GTM3033000R0001

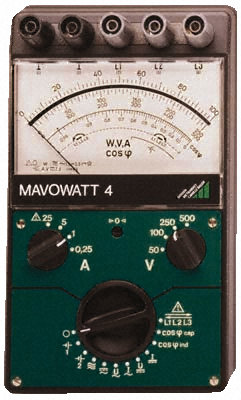

Power Meter Mavowatt 4
Direct power measurement for direct current and active power measurements for single-phase AC current and balanced three-phase rotating current
Reactive power detection
Also measures mesh voltage(s)
Ideal device for workshop, service and installation work
Rotary field direction display
cosf measurement
DC current 12.5 kW
Single-phase AC 12.5 kW (actual power)
Three-phase rotating current, balanced 25 kW (actual power) / 25 kVar √3 (reactive power)
Nom. current 0.25 / 1 / 5 / 25 A
Nom. voltage 50 / 100 / 250 / 500 V
Frequency range 10 → 400 Hz
AC / DC voltage measurement 50 / 100 / 250 / 500 V
AC / DC current measurement 0.25 / 1 / 5 / 25 A
Accuracy class 1.5 (2.5 P-, U, I)
Power supply 2 x 9 V flat-cell batteries, IEC 6 F 22
Dimensions 110 x 181 x 62 mm
Weight 0.8 kg

Информация

Производитель: Gossen Metrawatt

Артикул производителя: GTM3033000R0001
