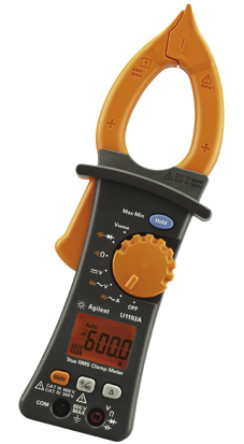

Измерительные клещи AGILENT, U1193A
Agilent U1190 Series Clamp Meters
The U1190 Series clamp meters are built to perform in the environments you work. Ergonomically built, the U1190 Series clamp meters fit comfortably in the palm of your hand and allow you to select measurement functions with just a simple thumb press. Better yet, the U1193A comes with a current measurement up to 600A.
Unique wire separator to separate wires from a bundle
Vsense to perform non-contact voltage detection
Built-in LED flashlight to illuminate test area
Visual (backlight alert) and audible continuity indication in noisy environments
Current measurement up to 600A
Digital multimeter (DMM) with resistance, capacitance, DCV, ACV, ACA, measurement capabilities
Continuity and diode test measurements
Operating temperature from -10 to 50 °C, 0 to 80% RH
CAT III 600V / CAT IV 300V safety rating
Battery type 2 x 1.5 V AAA Alkaline battery
Display Liquid crystal display (LCD)
Auto power OFF
Function Measurement range
DC voltage 600V (U1191A)
60 → 600V (U1192A, U1193A)
AC voltage 600V (U1191A)
60 → 600V (U1192A, U1193A)
AC current 400A (U1191A)
60 → 400A (U1192A)
60 → 600A (U1193A)
Resistance 600Ω → 6kΩ (U1191A)
600Ω → 60kΩ (U1192A, U1193A)
Diode 1.5V
Continuity 600Ω
Frequency 99.99 Hz → 99.99 kHz
Supplied with
Quick Start Guide, Certificate of calibration, Test leads with 4-mm tips, 1.5 V AAA Alkaline battery,Soft carrying case

Информация

Производитель: Agilent Technologies

Артикул производителя: U1193A
