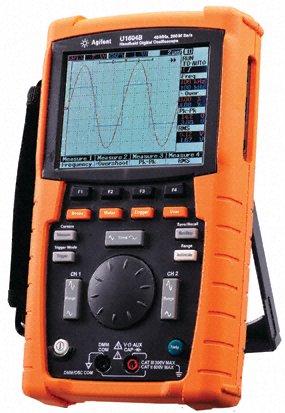

Осциллограф AGILENT, U1604B
Bandwidth 40MHz
Battery Life 4 h
Battery Type Rechargeable NiMH
Calibrated UKAS
Dimensions 13.8 x 6.6 x 24.1cm
Display Type Colour
Height 24.1cm
Length 13.8cm
Maximum Operating Temperature +50°C
Maximum Time Base 50s/div
Maximum Vertical Sensitivity 1 kV/div, 10 kV/div, 100 V/div
Minimum Operating Temperature 0°C
Minimum Time Base 10ns/div
Minimum Vertical Sensitivity 5 mV/div, 50 mV/div, 500 mV/div
Model Number p U1604B
Number of Channels 2
Oscilloscope Type Handheld
Power Source Battery
Record Length 250points
Rise Time 8.8ns
Safety Category CAT III 300 V
Safety Category Level CAT lll
Safety Category Voltage 300V
Sample Rate Random 100 Msps, 200 Msps
Screen Size 4.5in
Series U1600
USB Interface Yes
Vertical Resolution 8 bit
Weight 1.5kg
Width 6.6cm

Информация

Производитель: Agilent Technologies

Артикул производителя: U1604B
