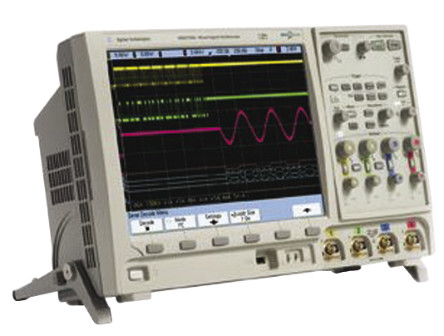

Осциллограф Agilent, MSO7104B
Bandwidth 1GHz
CAN Interface Yes
Dimensions 45.4 x 17.3 x 27.7cm
Display Type Colour
Height 27.7cm
IIC Interface Yes
Input Capacitance 8 (Digital) pF
Input Impedance 1 (Analogue) MΩ, 2.14 (Digital) kΩ
Length 45.4cm
Lin Interface Yes
Maximum Operating Temperature +55°C
Maximum Time Base 50s/div
Maximum Vertical Sensitivity 5V/div
Minimum Operating Temperature -10°C
Minimum Time Base 500ps/div
Minimum Vertical Sensitivity 2mV/div
Model Number p MSO7104B
Number of Analogue Channels 4
Number of Digital Channels 16
Power Source Mains
Record Length 8M points/ch
Rise Time 350ps
RS232 Interface Yes
Safety Category CAT I 300 V, CAT II 100 V
Safety Category Level CAT I, CAT II
Safety Category Voltage 100 V, 300 V
Sample Rate Random 4 Gsps
Screen Size 12.1in
Series InfiniiVision 7000B
SPI Interface Yes
UART Interface Yes
USB Interface Yes
Vertical Resolution 1 (Digital) bit, 8 (Analogue) bit
Weight 5.9kg
Width 17.3cm

Информация

Производитель: Agilent

Артикул производителя: MSO7104B
