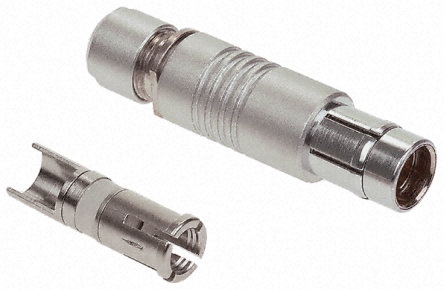

Разъём FISCHER, S102A054-130 +

Список производителей

Публикации

Fischer

Gender Plug
Current Rating 5.2A
Sealed Cable Plug

A plug or socket and any clamp set in the same series when assembled will give a properly sealed and screened connector, accepting cable within the diameter range specified. Solder connection to contacts and a positive cable grip with screening washers for earth/ground continuity. Instructions for assembly are included with clamp sets.
102 + 104 Series (W.W Fischer Latching)

102 + 104 Series

High grade circular connectors designed to meet the exacting demands of a variety of industries where mechanical and electrical durability is vital, and are ideal for medical, instrumentation, telecomms, nuclear and marine applications. Such requirements are met by:

* All sealed sockets individually helium leak tested to IP68 (80 metres)
Fully RFI, EMC compatible
Positive and simple plug/socket latching
Unique Fischer keying alignment
Accepts screened and unscreened cables

The range splits naturally by plug size into two series - 3 to 7 way (series 102) and 9 to 16 way (series 104). There are a variety of options including standard or sealed panel sockets, strain reliefs and protective covers and sleeves.

Информация

Производитель: Fischer

Артикул производителя: S102A054-130 +
