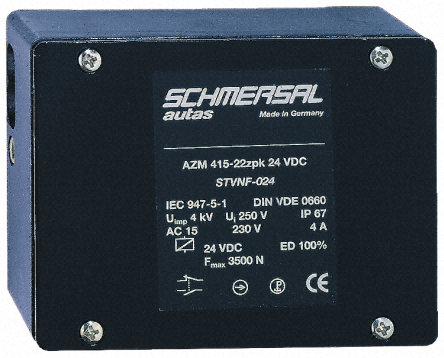

Замок SCHMERSAL, AZM415-22 ZPKE 230VAC

Список производителей

Публикации

Schmersal

Series AZM415
Safety Contacts 2 N/O, 2 N/C
Solenoid Voltage 230Vac
Action Power to Unlock
Actuator Included No
Holding Force 3500N
Connection Type M20
AZM415 Heavy Duty Solenoid Interlocks IP67

* Two switches in one enclosure
Manual release in the case of power failure - see accessories for M5 release key
Power to unlock
Adjustable ball latch to 500N
Contact Rating of 4 A (230 Vac)
IP67
Note

Actuating key not included

Approvals

BG, UL, CSA

Standards

IEC/EN60947-5-1, BG-GS-ET-19

Caution

EN60947-5-1 standard is only met if entire system consisting of safety sensor (AZM415), actuator (AZM415) and a safety monitoring module (AES) is used.
Solenoid Safety Switch

These guard locking devices ensure that guard doors remain shut until any dangerous condition has ceased to exist. With the guard door locked in place, the safety contacts are closed, with the position of the solenoid magnet monitored by an additional NC contact. Applying power to the solenoid allows the guard to be opened. The units are used in conjunction with a timer or standstill monitor. Installation is further simplified by new connection technology using insulation displacement terminals, an integral cable gland is provided. Units also have an auxiliary unlocking facility as an installation aid, and in case of a power failure. M5 triangular key available.

Информация

Производитель: Schmersal

Артикул производителя: AZM415-11/11 ZPKE 230VAC
